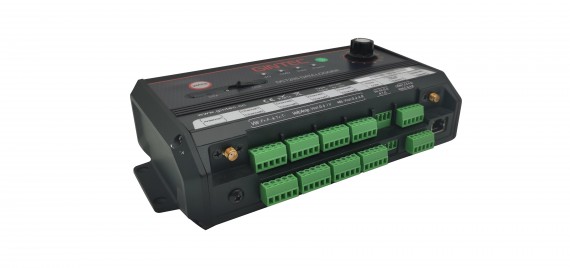

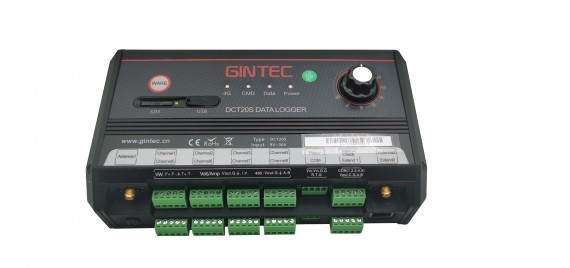

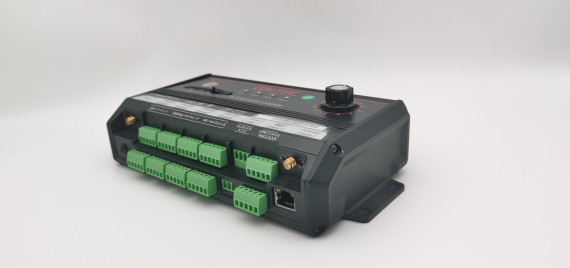

Data Logger DCT20S
DCT20S Data Logger is designed and developed by GINTEC and is a Low power consumption & cost-saving solution for geotechnical field.It supports Vibrating Wire sensors, Current sensors, Voltage Sensors and 485 sensors.
-
catalog
FEATURES
- Vibration Wire sensor support
- Voltage sensor support
- Current sensor support
- 485 digital sensor support
- Integrated 4G Connection (No Gateway Require)
- Web Browser remoted management
- Android Application Configuration
- Manual Readout Support
- Low Power Consumption
- 8 local channels, extendable to 32 channels
DCT20S Data Logger is designed and developed by GINTEC and is a Low power consumption & cost-saving solution for geotechnical field.
It supports Vibrating Wire sensors, Current sensors, Voltage Sensors and 485 sensors. DCT20S is also capable to verify frequency through handheld readout.
DCT20S has 8 local channels in default. It can be expanded to 32 channels. All the channels support VW & Voltage & Current & 485.
Integrated with 4G module, DCT20S can transmit data to TCP server directly, do not need use any gateway. Customer also can manage DCT20S remotely with cloud software (Run it in any Web Browser).
Configured with Android APP, you can connect to DCT20S with any Android device to check data, set parameters.
Application:
- Foundation Pit
- Landslide
- Mining Exploration
- Tunneling
- Dam Monitoring
- Structure Health Monitoring
SPECIFICATIONS
PACKAGING
