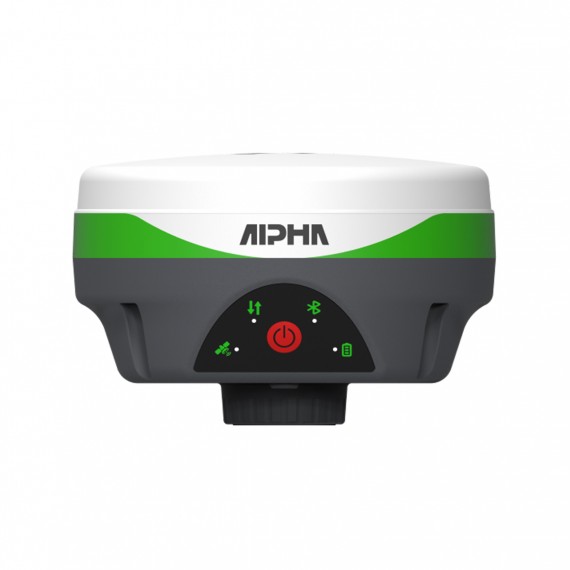

Alpha 4i GNSS
With the latest system framework, and the latest generation positioning engine SoC, Alpha 4i goes beyond the design limitation, and it unloads 50% of the burden for global surveyors successfully. It’s with excellent performance and ultra small size.
-
catalog
- Alpha4i.pdf (6.3M)
- Product Specifications
-
-

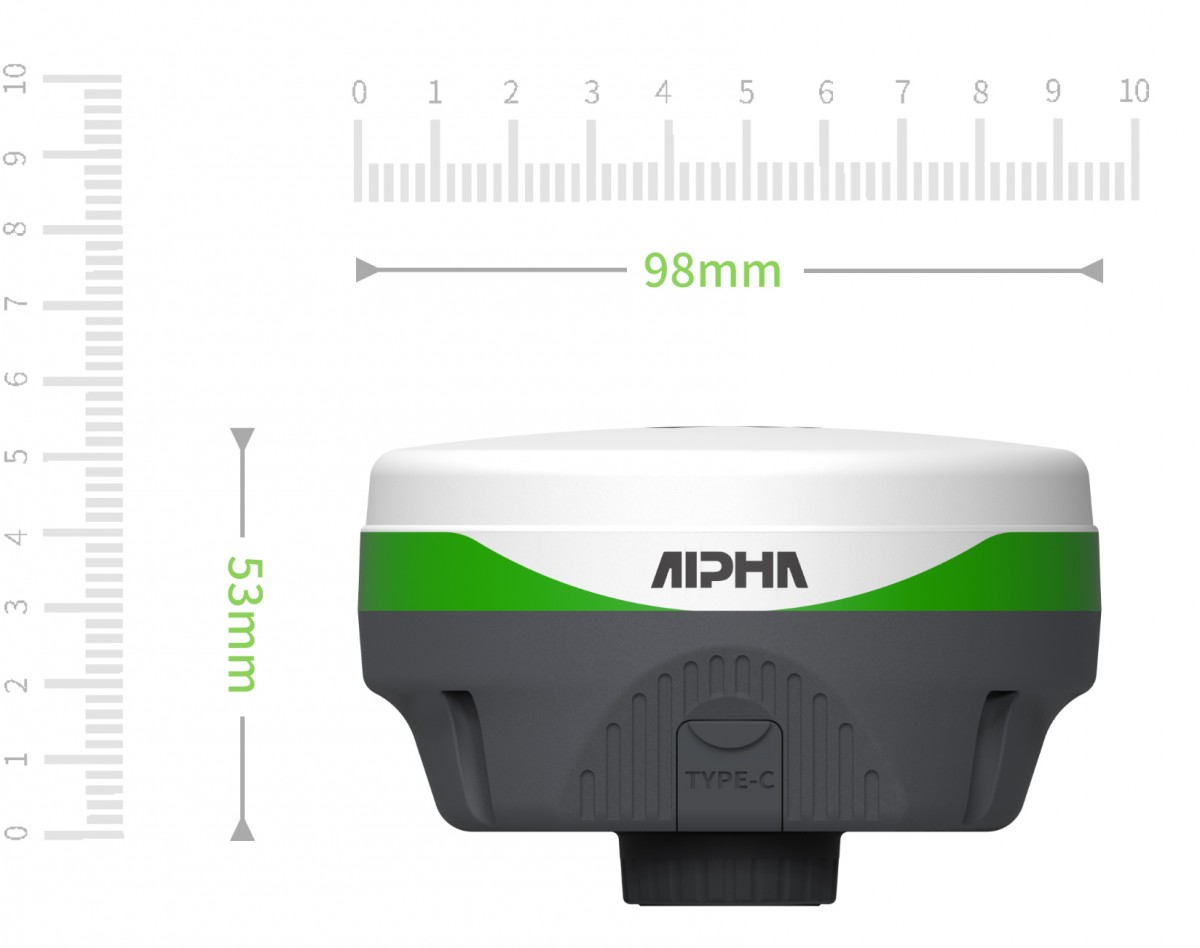

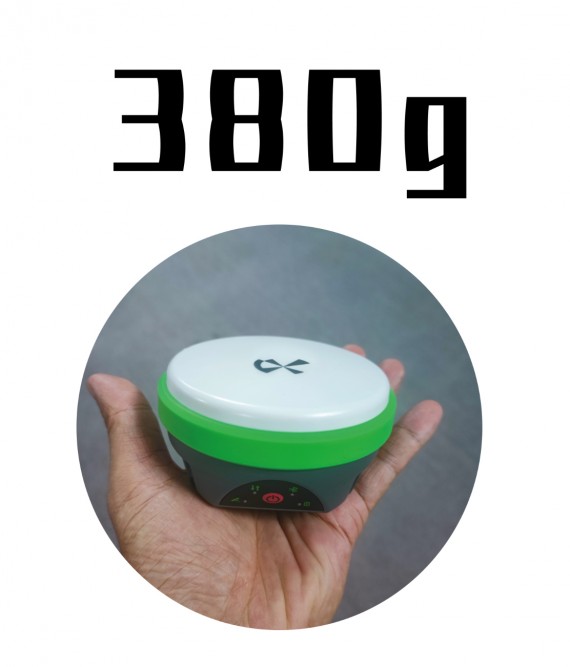

380g
-
-
98×53mm
-
-
3 Outstanding Technologies
-
-
90° Inertial Navigation
-
-
-
-
-
-
OVERVIEW
Ideally made, lightly weight
 |
 |
||||
Material of the Shell： |
|||||

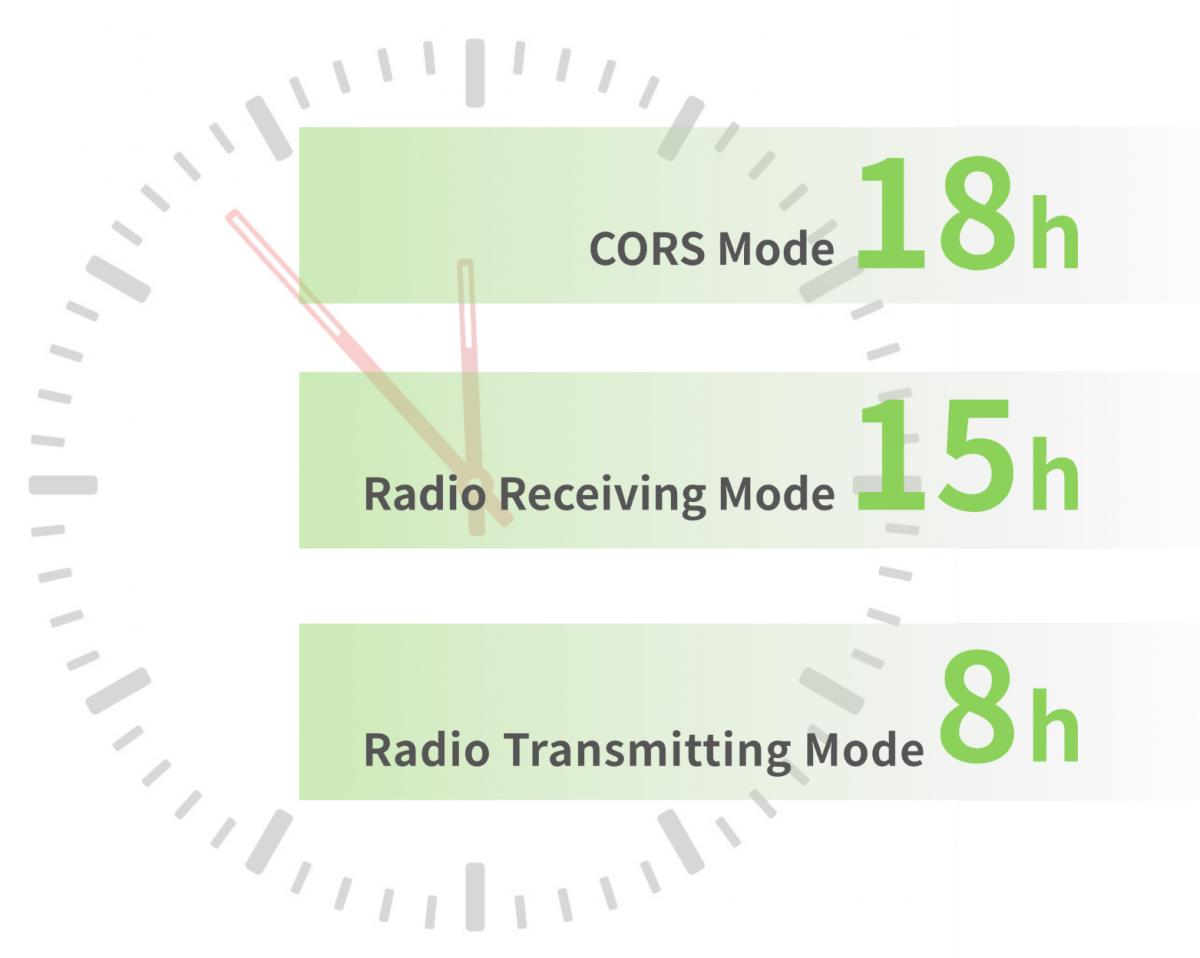

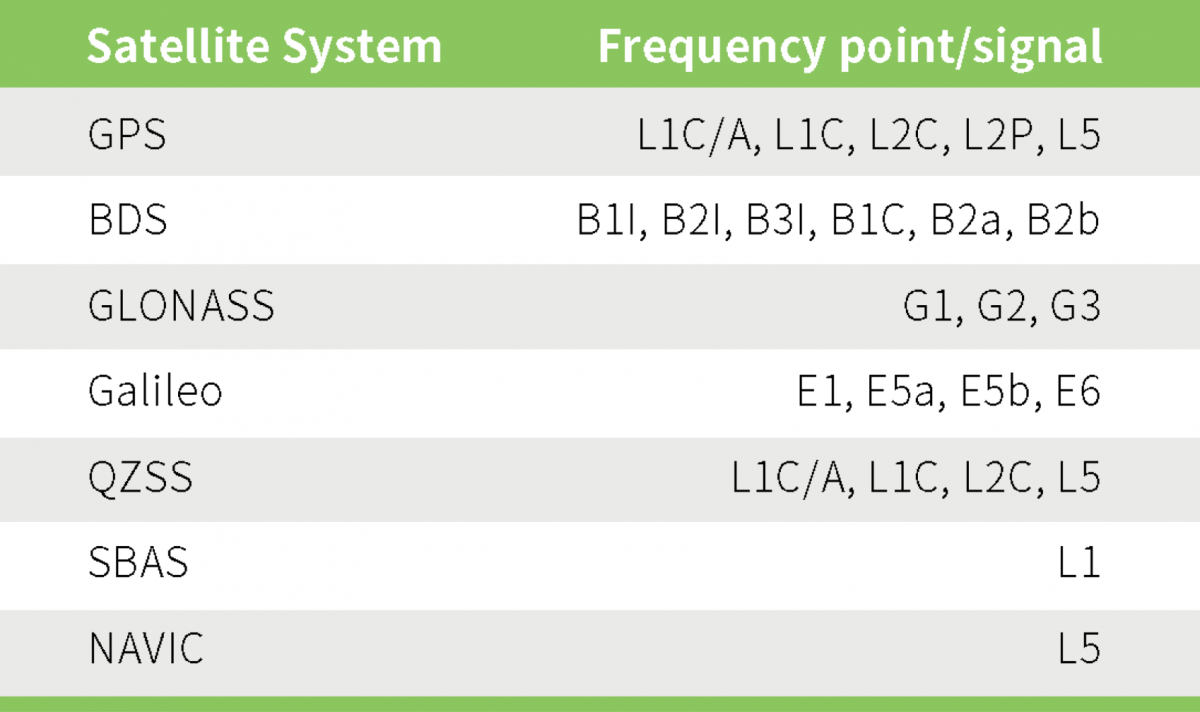

| 24 frequencies of the 7 major satellites | Long battery life | ||||
 |
 |
||||
3 Outstanding Technologies |
|||||

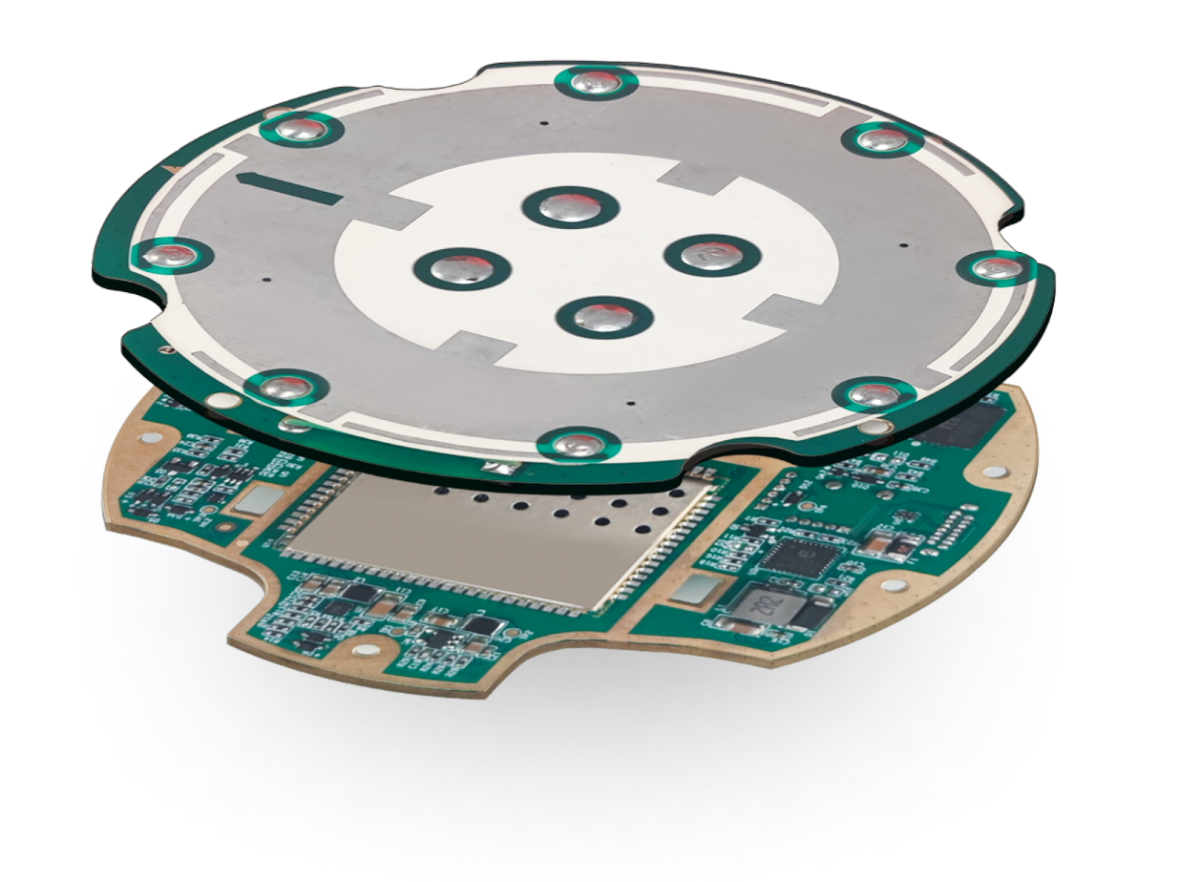

All-satellites full-frequency 8cm positioning antenna
Alpha 4i carries all-satellites full-frequency positioning antenna, which, for the first time, shortens the traditional 11cm antenna diameter to 8cm, without losing any signal. With High frequency microwave radiation carrier and electromagnetic band gap Technology, combined four feed points phase center design and high-gain widebeam, Alpha 4i can get instant fixed solution in low elevation and complicated situations. |
 |
||||
| The latest generation of global positioning SoC chip | |||||
| Integrated with the latest generation NebulasIV radio frequency baseband and high-precision algorithm, the latest SoC chip supports all-satellites full-frequency computation algorithms. Independent frequency point tracking and 60 dB narrow band anti-interference, make it continue to positioning even lose satellite signal. | |||||
| Embedded real-time operating system RTOS | |||||
| mbedded military class real-time operating system RTOS for the first time, Alpha 4i can fully satisfy RTK development requirement and is more compatible with IoT application scenario.RTOS system is widely used in spacecrafts, missiles, robots, Tmall Elf and other IoT devices for its lower powe | |||||
| Fully Compatible Transceiver Internal UHF Radio | |||||
| Supports various working modes in global regions Support 410-470MHz full frequency band Compatible with various mainstream RTK protocols Output stable solution to 3KM base station surveying area Compatible with 35W external radio |  |
||||

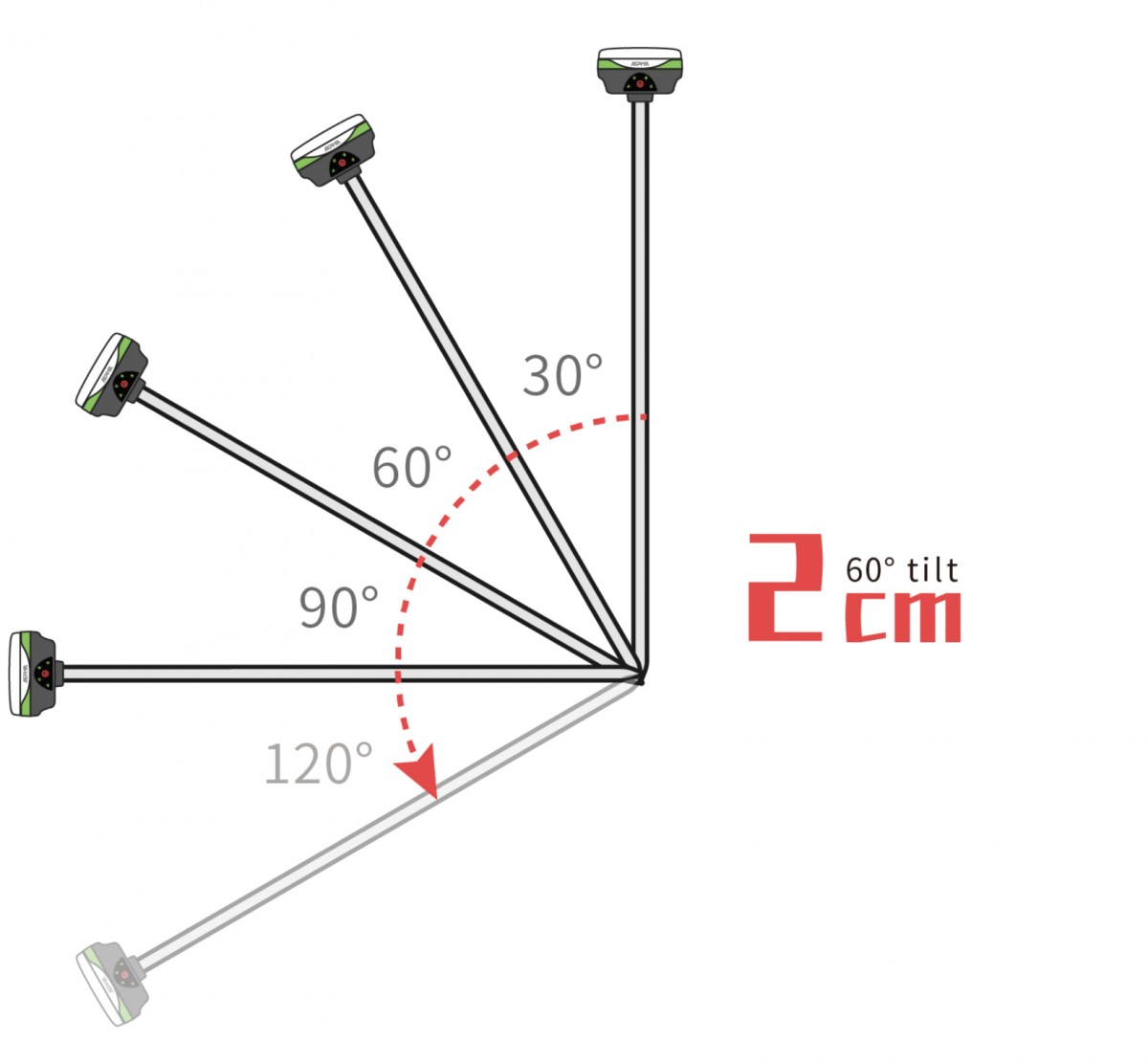

| 90° Inertial Navigation | |||||
 |
 |
||||
| Fast initialization IMU, support tilt measurement with 2CM accuracy when tilt angle 60°. IMU can still work in tilt angle 90° even 120° | |||||
 |
|||||
 |
Built-in Internal Radio
Built-in transceiver integrated radio, compatible with multiple protocols |
 |
Android phone
Connect Android phone via Bluetooth as controller |
 |
Controller
Alpha Bi controller it’s optional. Big red button, Type nine keyboard |

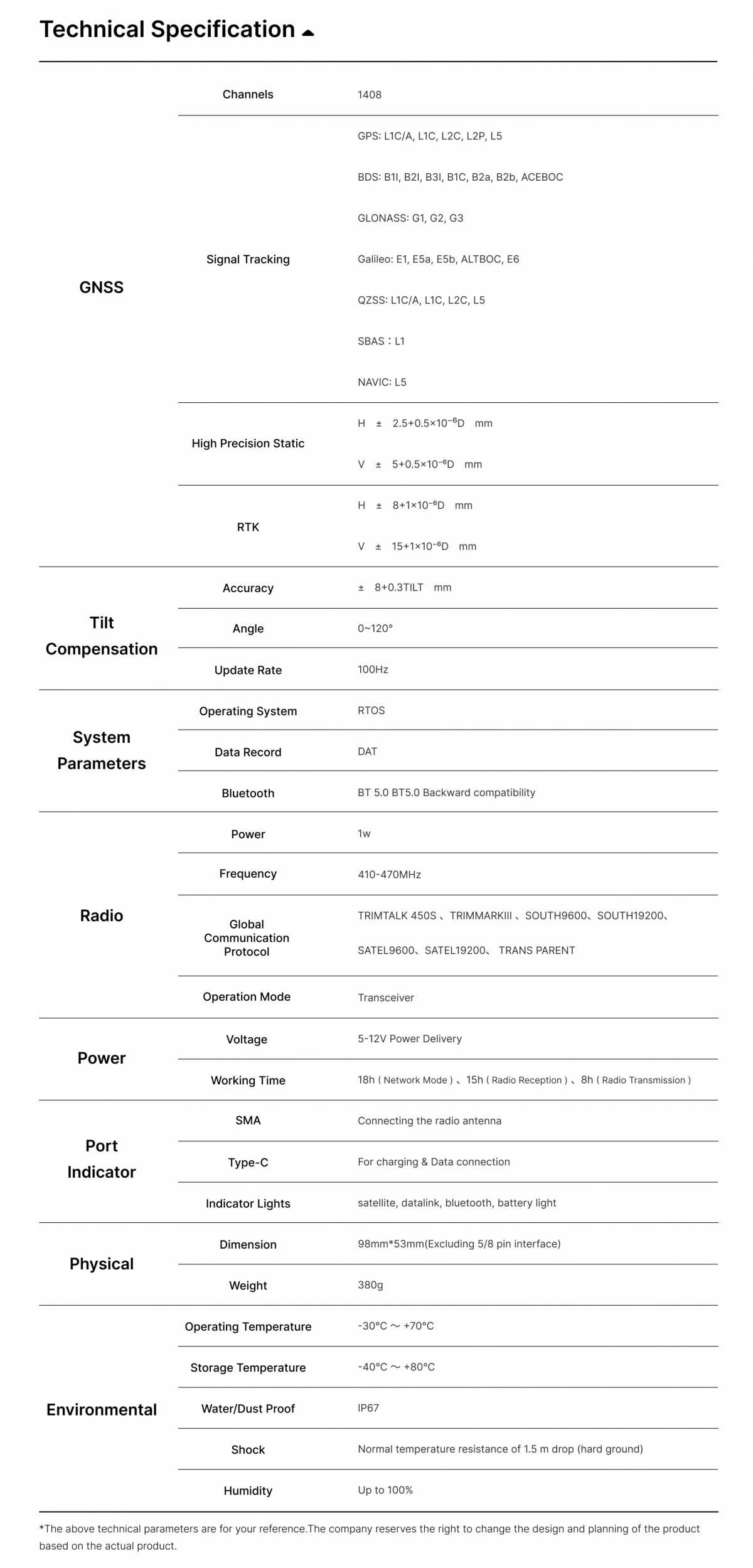

SPECIFICATIONS
