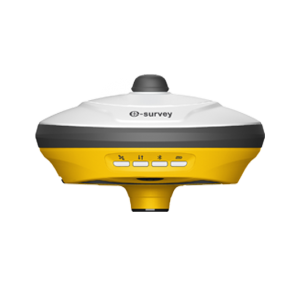

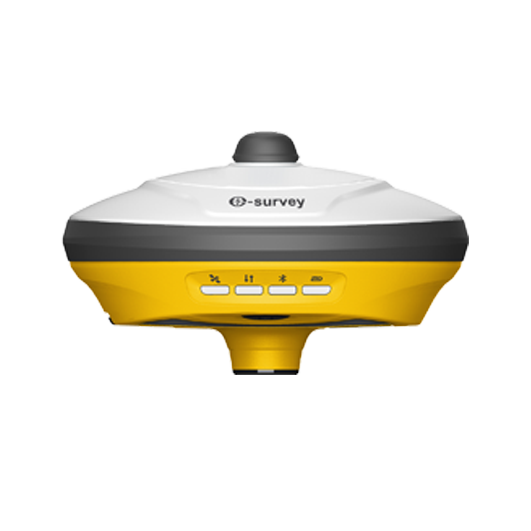

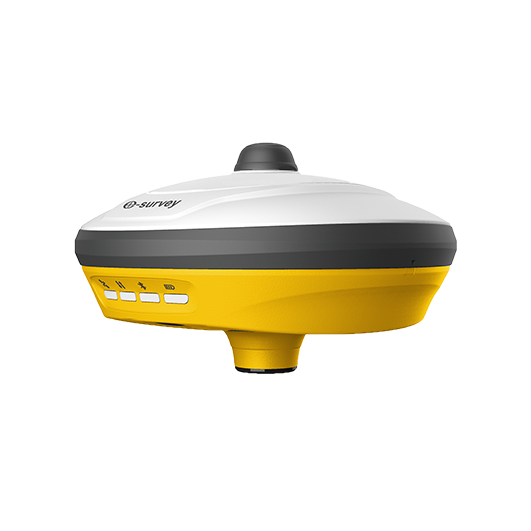

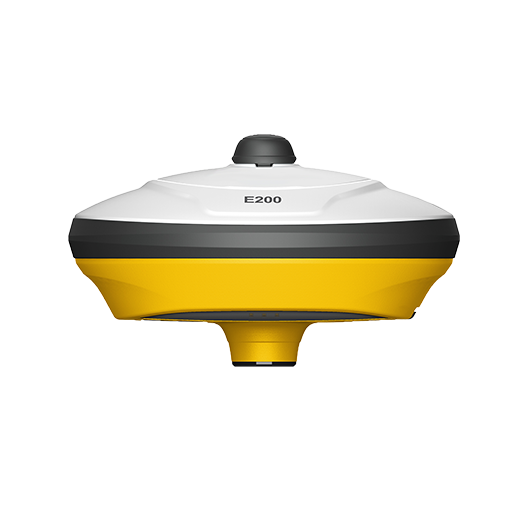

E200
Designed for Rover
Gain a competitive edge with the eSurvey E200 GNSS Receiver. The E200 is equipped with advanced technology to make sure you have maximum productivity in the field. The durable IP67 design makes it possible to work in tough environments. Combining 4G GSM modem, internal radio (Rx only), RTK Aid function and 60°inclination IMU function, the E200 is the best choice for a rover station receiver.
FEATURES
Lightweight Design: Easy to Carry
Easily carry it in various complex environments and use it in any rover station scenarios, benefitting from its lightweight and compact design.
Web UI
It allows users to view position status, set up working mode, download data, and update firmware from the Web user interface with any smartphone, tablet, or PC.
Integrated RX Radio
The built-in Global 4G Network and RX radio module allows the E200 to work perfectly as a rover station.
Max 60° Tilt Survey: A Different Way of Working
· Quickly measure accurate points while standing or walking without leveling the pole.
· Concentrate on where the pole tip needs to go, which is especially useful during a stakeout.
· Easily start a survey in environments that are hard to reach, such as building corners and slopes.
· No longer worry about the movement of the pole when measuring, provided that the pole tip is stationary.
RTK Aid Function: Uninterrupted Work
Work without interruption even when RTK corrections fail, powered by our RTK aid function.
Multi-constellations and Multi-frequency
With 1408 channels of GNSS tracking, the E200 provides stable and reliable accuracy. All GNSS signals can be tracked, including GPS, BDS, GLONASS, GALILEO and QZSS.
SPECIFICATIONS
|
GNSS
Performance |
E200 |
|
|
Satellites tracking |
GPS |
L1CA, L2P(Y), L2C, L5 |
|
BDS |
B1I, B2I, B3I, B1C, B2a, B2b1 |
|
|
GLONASS |
L1, L2 |
|
|
GALILEO |
E1, E5a, E5b, E61 |
|
|
QZSS |
L1, L2, L5, L61 |
|
|
IRNSS |
× |
|
|
SBAS |
WAAS, GAGAN, MSAS, EGNOS, SDCM,
BDS |
|
|
L-Band |
B2b PPP (Only for the Asian-Pacific
region) |
|
|
Channels |
1408 |
|
|
Signal reacquisition |
× |
|
|
Cold start |
＜ 30 seconds |
|
|
Warm start |
＜ 20 seconds |
|
|
Hot start |
< 5 seconds |
|
|
RTK signal initialization |
< 5 seconds |
|
|
Initialization reliability |
> 99.9% |
|
|
Update rate |
20 Hz |
|
|
High precision static |
- H: 2.5 mm + 0.1 ppm (RMS) - V: 3.5 mm + 0.4 ppm (RMS) |
|
|
Static and Fast Static |
- H: 3 mm + 0.5 ppm (RMS) - V: 5 mm + 0.5 ppm (RMS) |
|
|
RTK |
- H: 5 mm + 0.5 ppm (RMS) - V: 10 mm+0.5 ppm (RMS) |
|
|
Standard point positioning |
- H: 1.5 m (RMS) - V: 2.5 m (RMS) |
|
|
Code differential |
- H: 0.4 m (RMS) - V: 0.8 m (RMS) |
|
|
SBAS |
- H: 0.3 m (RMS) - V: 0.6 m (RMS) |
|
|
Correction data |
RTCM V3.X, RTCM2, CMR |
|
|
Data output |
GGA, ZDA, GSA, GSV, GST, VTG,
RMC, GLL, Binary |
|
|
Power Supply |
||
|
Battery |
Rechargeable Built-in Lithium-ion battery x 1 7.2 V ~ 6900 mAh |
|
|
Voltage |
9 - 28V dc |
|
|
Working time |
Up to 9 hours as a rover |
|
|
Charging time |
Typically 4 hours |
|
|
Internet
Modem |
||
|
Supported band |
Global 4G - LTE FDD: B1, B2, B3, B4, B5,
B7, B8, B12, B13, B18, B19, B20, B25, B26, B28 - LTE TDD: B38, B39, B40, B41 - UMTS: B1, B2, B4, B5, B6, B8,
B19 - GSM: B2, B3, B5, B8 |
|
|
System |
||
|
Operation system |
Linux |
|
|
Internal memory |
8 GB |
|
|
Bluetooth |
BT 5.0 + EDR, BLE |
|
|
Wi-Fi |
802.11a/b/g/n/ac |
|
|
SIM card |
yes |
|
|
TF card |
× |
|
|
TNC |
Connect internal radio with
antenna |
|
|
5-pin port |
Connect to external radio and
external power; NMEA output |
|
|
7-pin port |
× |
|
|
Type-C port |
Charge and data transmission |
|
|
Web UI |
View status, update firmware, set
up working mode, download data, etc. |
|
|
Intelligent voice |
Broadcast working mode and status |
|
|
MEMS |
Fast initialization, dynamic tilt
survey up to 60° |
|
|
Physical |
||
|
Dimension |
152 mm x 92 mm |
|
|
Weight |
945 g |
|
|
Operating temperature |
-30℃ - +65℃ |
|
|
Storage temperature |
-40℃ -
+80℃ |
|
|
Water/dustproof |
IP67 |
|
|
Shock |
- Withstand topple over from a 2
m survey pole onto hard surfaces - Survive a 1.2 m free drop |
|
|
Vibration |
Vibration resistant |
|
|
Humidity |
Up to 100% |
|
|
Indicators |
Satellites, datalink, battery,
Bluetooth |
|
|
Button |
The power button, short press to
voice broadcast working mode and status |
|
|
Screen |
× |
|
|
Certificate |
CE, FCC, NGS, IGS |
|
|
Internal
Radio |
||
|
Type |
RX |
|
|
Emitting power |
× |
|
|
Operation range |
× |
|
|
Frequency range |
410 - 470 MHz |
|
|
Channel spacing |
6.25 KHz3 / 12.5 KHz / 25 KHz |
|
|
Protocol |
Satel, PCC, TrimTalk, TrimMark
III, TRANSEOT(PCC-GMSK), South, HiTarget, GEOTALK, GEOMK3, HZSZ |
|
