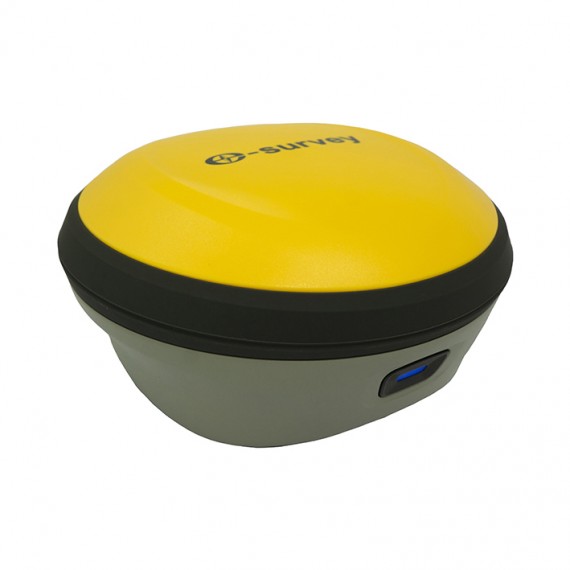

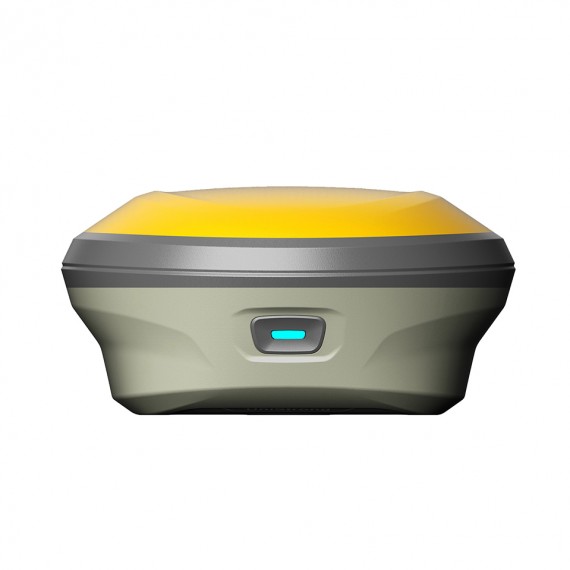

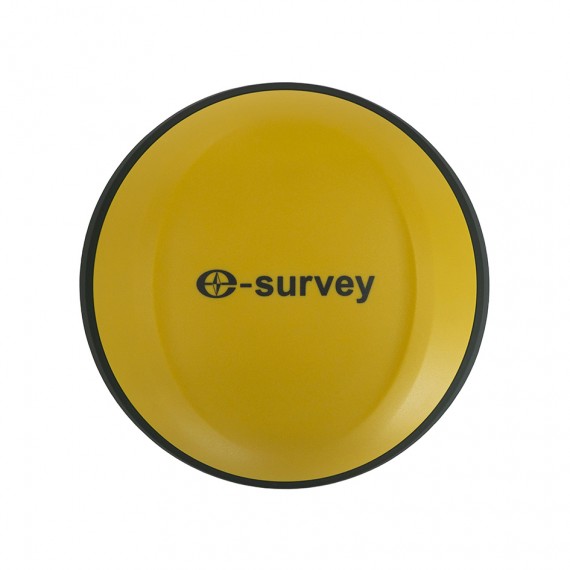

E500
Tilt-featured RTK Receiver
The eSurvey E500 is manufactured for improved performance in complex GNSS conditions. The durable structural design makes it adapt to various working environments. A maximum 60° incline angle ensures a tilt-to-go survey without stopping your workflow.
FEATURES
iF Design Award Product
A global symbol of excellent design - especially with hosting. One of the most prestigious design awards worldwide.
Battery Indicator: An Intelligent Hint of Working Time
Quickly check the remaining battery power in real-time and figure out the working time without data loss.
Integrated Tx/Rx UHF Modem
The built-in transceiver radio modem, compatible with major radio protocols, allows the E500 to work as a base or rover station.

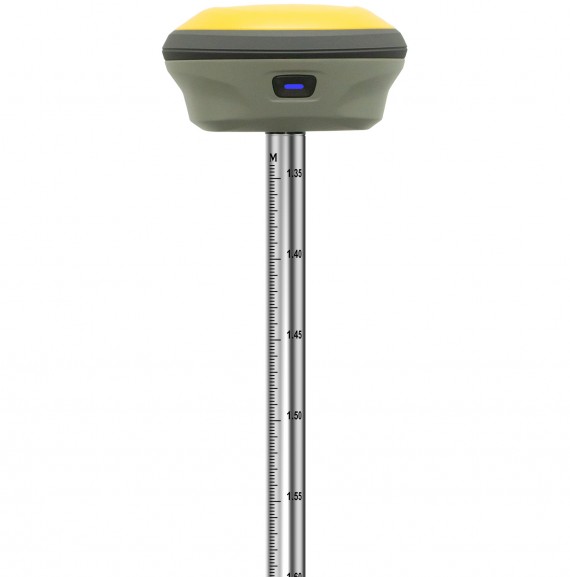

Max 60° Tilt Survey: A Different Way of Working
· Quickly measure accurate points while standing or walking without leveling the pole.
· Concentrate on where the pole tip needs to go, which is especially useful during a stakeout.
· Easily start a survey in environments that are hard to reach, such as building corners and slopes.
· No longer worry about the movement of the pole when measuring, provided that the pole tip is stationary.
Rugged Design: Better Resistance to Shock and Fall
Use it for many years, for it is strongly made and capable of withstanding rough handling.
RTK Aid Function: Uninterrupted Work
Work without interruption even when RTK corrections fail, powered by our RTK aid function.
SPECIFICATIONS
|
GNSS
Performance |
E500 |
|
|
Satellites tracking |
GPS |
L1CA, L2P(Y), L2C, L5 |
|
BDS |
B1I, B2I, B3I, B1C, B2a, B2b1 |
|
|
GLONASS |
L1, L2 |
|
|
GALILEO |
E1, E5a, E5b, E61 |
|
|
QZSS |
L1, L2, L5, L61 |
|
|
IRNSS |
× |
|
|
SBAS |
WAAS, GAGAN, MSAS, EGNOS, SDCM,
BDS |
|
|
L-Band |
B2b PPP (Only for the Asian-Pacific
region) |
|
|
Channels |
1408 |
|
|
Signal reacquisition |
× |
|
|
Cold start |
＜ 30 seconds |
|
|
Warm start |
＜ 20 seconds |
|
|
Hot start |
< 5 seconds |
|
|
RTK signal initialization |
< 5 seconds |
|
|
Initialization reliability |
> 99.9% |
|
|
Update rate |
20 Hz |
|
|
High precision static |
- H: 2.5 mm + 0.1 ppm (RMS) - V: 3.5 mm + 0.4 ppm (RMS) |
|
|
Static and Fast Static |
- H: 3 mm + 0.5 ppm (RMS) - V: 5 mm + 0.5 ppm (RMS) |
|
|
RTK |
- H: 5 mm + 0.5 ppm (RMS) - V: 10 mm+0.5 ppm (RMS) |
|
|
Standard point positioning |
- H: 1.5 m (RMS) - V: 2.5 m (RMS) |
|
|
Code differential |
- H: 0.4 m (RMS) - V: 0.8 m (RMS) |
|
|
SBAS |
- H: 0.3 m (RMS) - V: 0.6 m (RMS) |
|
|
Correction data |
RTCM V3.X, RTCM2, CMR |
|
|
Data output |
GGA, ZDA, GSA, GSV, GST, VTG,
RMC, GLL, Binary |
|
|
Power Supply |
||
|
Battery |
Rechargeable Built-in Lithium-ion battery x 2 4.2 V ~ 6800 mAh |
|
|
Voltage |
9 - 28V dc |
|
|
Working time |
Up to 12 hours |
|
|
Charging time |
Typically 4 hours |
|
|
Internet
Modem |
||
|
Supported band |
Global 4G - LTE FDD: B1, B2, B3, B4, B5,
B7, B8, B12, B13, B18, B19, B20, B25, B26, B28 - LTE TDD: B38, B39, B40, B41 - UMTS: B1, B2, B4, B5, B6, B8,
B19 - GSM: B2, B3, B5, B8 |
|
|
System |
||
|
Operation system |
Linux |
|
|
Internal memory |
8 GB |
|
|
Bluetooth |
BT 5.0 + EDR, BLE |
|
|
Wi-Fi |
802.11a/b/g/n/ac |
|
|
SIM card |
yes |
|
|
TF card |
× |
|
|
TNC |
Connect internal radio with
antenna |
|
|
5-pin port |
Connect to external radio and
external power; NMEA output |
|
|
7-pin port |
× |
|
|
Type-C port |
Charge and data transmission |
|
|
Web UI |
View status, update firmware, set
up working mode, download data, etc. |
|
|
Intelligent voice |
Broadcast working mode and status |
|
|
MEMS |
Fast initialization, dynamic tilt
survey up to 60° |
|
|
Physical |
||
|
Dimension |
148 mm x 74,5 mm |
|
|
Weight |
1000 g |
|
|
Operating temperature |
-30℃ - +65℃ |
|
|
Storage temperature |
-40℃ -
+80℃ |
|
|
Water/dustproof |
IP67 |
|
|
Shock |
- Withstand topple over from a 2
m survey pole onto hard surfaces - Survive a 1.2 m free drop |
|
|
Vibration |
Vibration resistant |
|
|
Humidity |
Up to 100% |
|
|
Indicators |
Battery |
|
|
Button |
The power button, short press to
voice broadcast working mode and status |
|
|
Screen |
× |
|
|
Certificate |
CE, FCC, NGS, IGS |
|
|
Internal
Radio |
||
|
Type |
TX and RX |
|
|
Emitting power |
1 W |
|
|
Operation range |
- 3 - 5 km typically - 10 km with optimal conditions2 |
|
|
Frequency range |
410 - 470 MHz |
|
|
Channel spacing |
6.25 KHz3 / 12.5 KHz / 25 KHz /
280 KHz4 |
|
|
Protocol |
Satel, PCC, TrimTalk, TrimMark
III, TRANSEOT(PCC-GMSK), South, HiTarget, GEOTALK, GEOMK3, HZSZ, 900M
Hopping4 |
|
